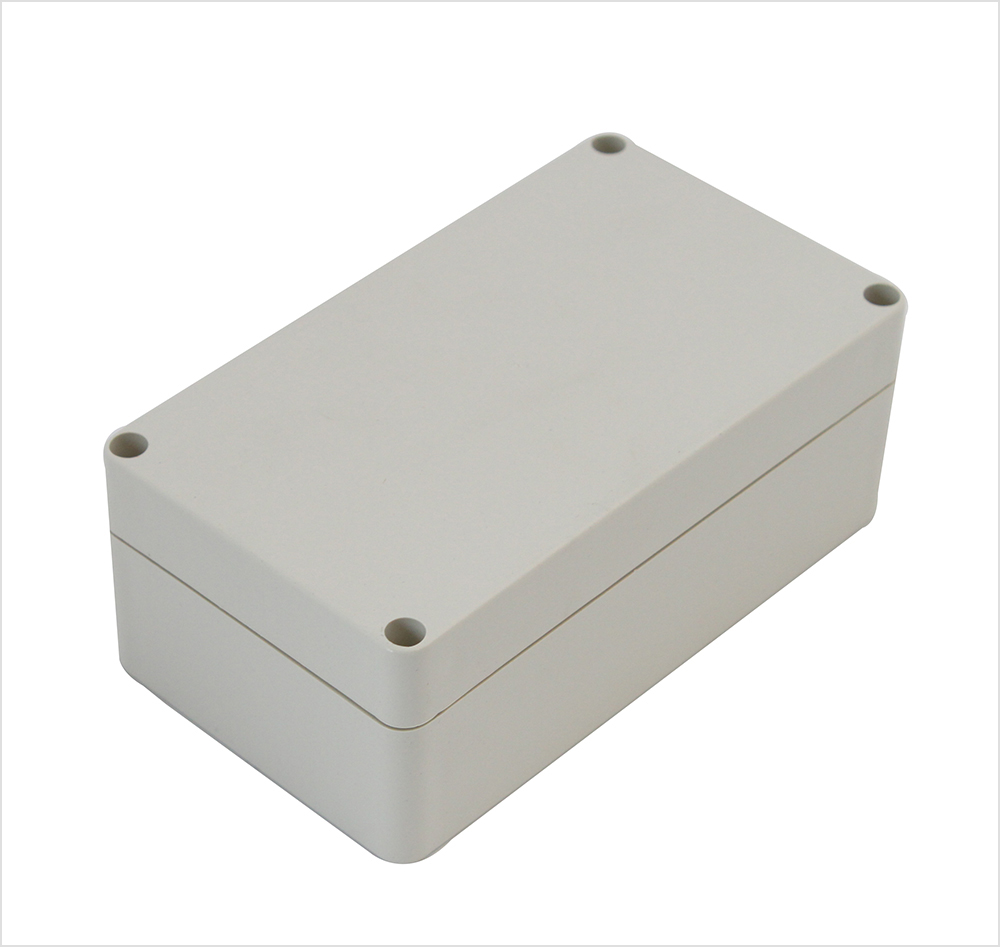

Product Description
Item No : PW155
Material : ABS/PC
Size : 158 * 90 * 60 mm
Weight : 227 g
Color : Gray white
IP RATING : IP65
PDF :
1.Material: High impact ABS;
2.Operating Temperature : -20C to 60C;
3.Protection level: IP65 of IEC 529 ; The lid and base incorporate a tongue and groove sealing system with a
silicon gasket ;better anti-corrosion performance.

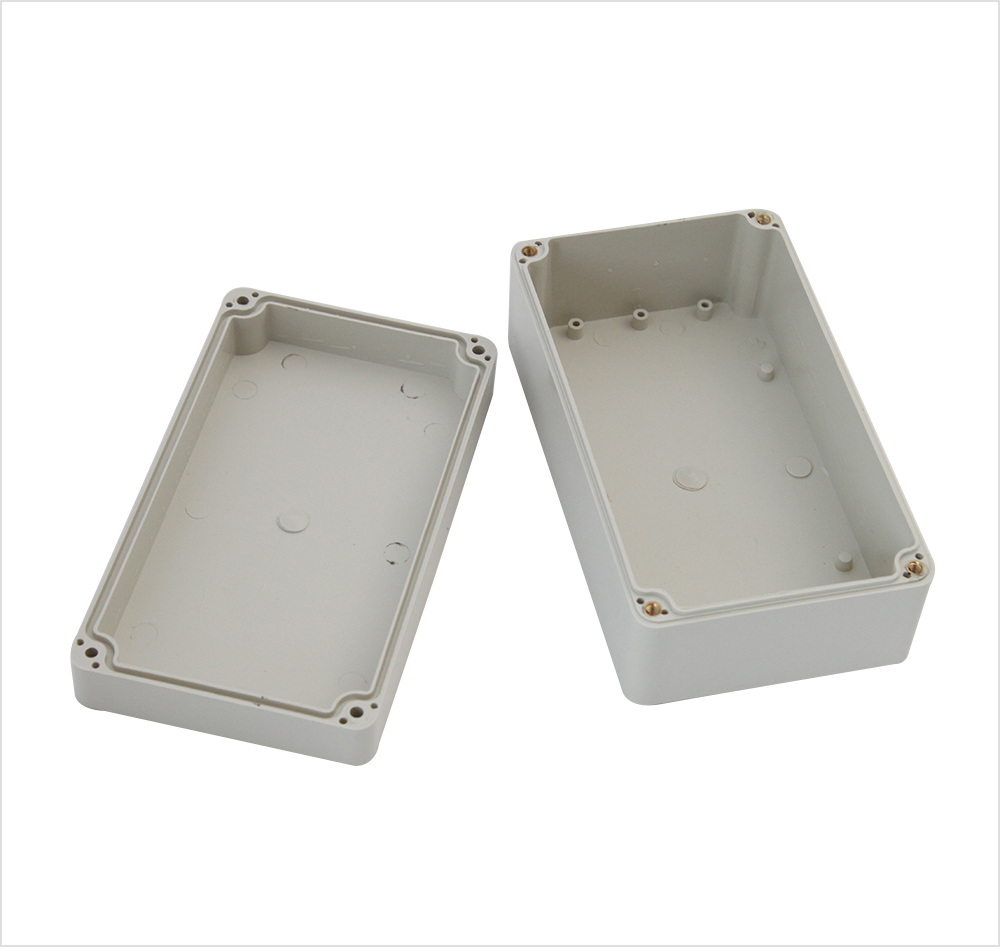

4. Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass
inserts
5. Lid fixing screw are stainless steel (non-magnetic) into threaded brass inserts.
1.Color and material can be changed as your interesting;
2.Certain modification can be done according to your requirments; such as drilling, painting, punching,
silk-screen printing and etc;
3.Delivery term: Airfreight,Seafreight and Express are all available.
4.Your design is welcome,the mould fee can be offset when future order reaches a certain amount;
|
PARTS |
||||
|
S/N |
PART NAME |
QTY |
METERIAL |
SEPCIFICATION |
|
1 |
COVER |
1 |
ABS |
PC Transparent Lid Available |
|
2 |
BASE |
1 |
ABS |
|
|
3 |
SEALING |
1 |
SILICON |
|
|
4 |
SCREW |
4 |
IRON NICKEL PLATING
|
|
This series enclosure is widely applied in connection boxes, module cases, control boxes and other types of electronics.
We offer hundreds of plastic enclosures are available with different sizes.
